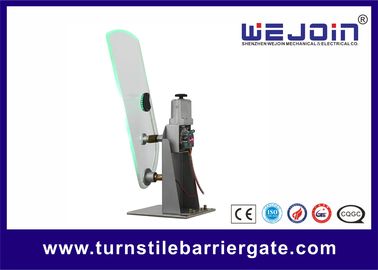

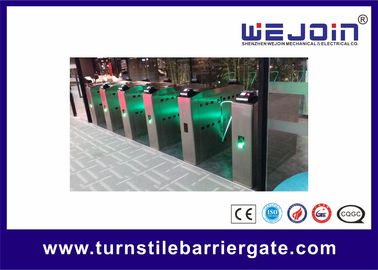

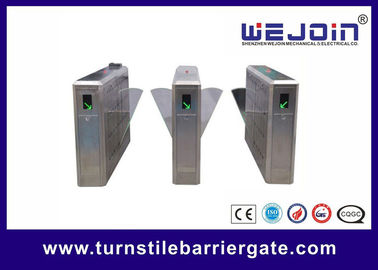

Pop Full-Automatic Flap Barrier Used In Subway And Bus Station With lighten Wing

Основная информация
Место происхождения: Шэньчжэнь
Фирменное наименование: WEJOIN
Сертификация: CE,ISO,SGS
Номер модели: WJTY202
Количество мин заказа: 1 пара
Упаковывая детали: Деревянные
Условия оплаты: T/T
Подробная информация
Материал корпуса: Нержавеющее снабжение жилищем Напряжение: AC110V, AC220V
направление: bi-направление
Высокий свет:

Безопасность Турникеты

,

Половина высоты турникет


Характер продукции

Quick Introduction:



This flap barrier gate is the combination of machinery, electronic, CPU control and variety of personal

authentication identification technology.It can be compatible with IC card, ID card, code bar, and fingerprint

identification unit.WEJOIN flap barrier has features of precise craftsmanship, comprehensive functions and high

 technology. It has application in high class communities, intelligent buildings, hotels, subway stations and so on .



Specifications



Cabinet material

cold rolled steel & aluminum alloy

Power supply

AC220V±15%, AC110V±15%  50/60Hz

Motor voltage

DC24V (brush motor)

Access device input voltage

dry contact

Max flow rate

30~40 people per minute

Flap opening/closing time

0.5s ~ 1s

reset time when power on

2s

protection grade

IP32

working environment

outdoors (with shelter) and indoors.

working temperature

-25°C ~ +50°C







Functions and Features

1. The design is of integration of machinery and electronic structure, with special drive style and reliable

    machinery auto locking solution, precise worm gear, and cabinet composite structure.

2. Malfunction self-detection. Which is easy for operation and maintenance.

3. Operational mode can be set up through the built-in menu on the control board.

4. Flap auto reversing when meeting exterior force.

5. Audible and visual alarm in case of unauthorized access.

6. Auti-collision function, the flap will stay close if not receiving the open signal.

7. Flap work synchronously.

8.Auto reset function, after the flap open if no pedestrian passes in a fixed time, the system will cancel the order

 and the auto-reset time is adjustable.

9. Flaps open when power off, and auto-close when power on.
