Parking Barrier Gate Technical Data
1. Working temperature (motor): -35℃~ + 70℃
2. Power supply input voltage: AC100~264V
3. Controller input voltage: DC24V±10%, 7.5A
4. Motor power: 180W
5. Relative humidity: 30%~80%, no condensation
6. Distance of remote control: open and undisturbed, L≤50M
7. Running speed: 1.5~6 seconds adjustable
8. MTBF: 3,000,000 times

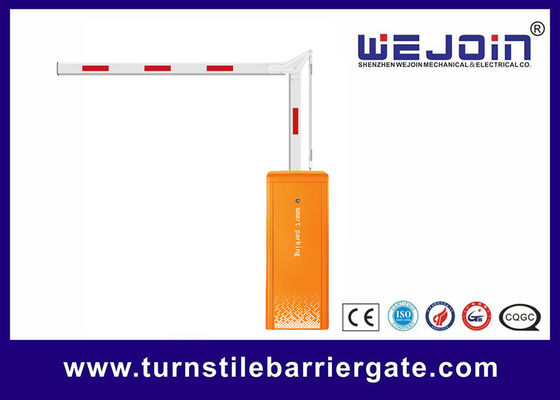

Automatic Barrier Gate Brief Introduction
The product consists of five parts: the barrier cover, the cabinet, the transmission mechanism, the control panel, and the barrier arm. It comes in left - hand and right - hand versions and is applied to parking lot access control systems. The product is available in three types: straight - arm barrier gate, folding - arm barrier gate, and fence barrier gate.
Boom Barrier Basic Features
1. The product features a DC24V brushless motor, integrated with a connecting rod transmission mechanism and a balance spring. This configuration not only ensures low power consumption and high operational efficiency but also significantly reduces noise during operation. The advanced brushless motor technology guarantees a longer service life and more stable performance, making it highly reliable for continuous use.
2. It comes with an auto-reversing on obstruction function, which immediately activates when the barrier arm meets any resistance during the lowering process, effectively preventing potential damage. The delay auto-closing function allows for a customizable waiting time before the arm descends, enhancing convenience. Additionally, it supports a counting function to keep track of passing vehicles and a motorcade passing mode for seamless entry of multiple vehicles.
3. The product is highly adaptable, supporting the connection of external radar, loop detector, and infrared photocell anti-smashing functions to ensure safety. With a built-in DC 12V power output, it can directly supply power to external radar devices, eliminating the need for an additional power source.
4. For flexible communication options, it supports RS485 communication for real-time data exchange and RS485 off-line connection, enabling convenient data transfer and system integration.
5. To meet different user requirements, a DC24V power supply is available as an optional feature, providing more choices for power configuration.
