100% Duty Cycle High-Performance Car Park Barrier Gate for Parking Facility Security

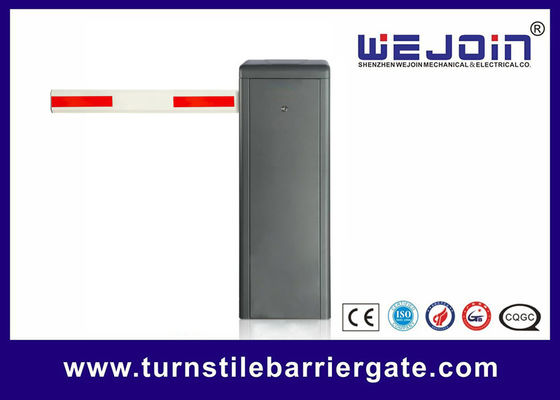

Automatic Barrier Gate Brief Introduction

The product consists of four parts: cabinet, transmission mechanism, control unit, and boom. It distinguishes between left-installed and right-installed, and it is used in parking lot entrance and exit control systems.

This product is divided into three types: barrier gate with straight boom, barrier gate with folding boom, and barrier gate with fence boom.

Boom Barrier Technical Data

1. Working temperature (motor): -35℃~ + 70℃

2. Power supply input voltage: AC100~264V

3. Controller input voltage: DC24V±10%, 7.5A

4. Motor power: 180W

5. Relative humidity: 30%~80%, no condensation

6. Distance of remote control: open and undisturbed, L≤50M

7. Running speed: 1.5~6 seconds adjustable

8. MTBF: 3,000,000 times

Barrier Gate Controller Interface

1. Wire Control Interface:

This interface is available for parking system, also available for external controller to control barrier gate.

2. Anti-smashing Interface:

Infrared Photocell: Boom will lift up when short circulate "Infrared photocell" and "GND" interfaces during boom falling down.

Loop Detector: Boom will lift up when short circulate "loop detector" and "GND" interfaces during boom falling down; when boom moves to up limit position, boom will fall down after "loop detector" and "GND" interfaces disconnected.

3. Relay Output Interface:

The relay output can be set to meet different application requirements by setting the output mode. For details, please refer to item H-16 of advanced settings. The default is that the limit signal output is as follows:

When the barrier opens to up limit position, the COM and LmO are connected;

When the barrier closes to down limit position, the COM and LmC are connected;

During the opening and closing, COM and LmC, LmO are disconnected.
