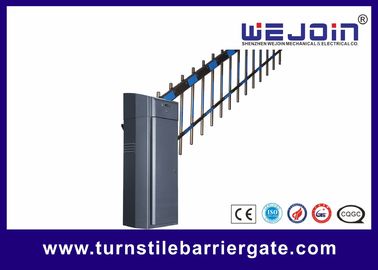

10 Million Operating Times Commerrcial Car Barrier Gate Vehicle Barrier Gates with Fence Boom

1 набор
MOQ
лично переговорить
цена
10 Million Operating Times Commerrcial Car Barrier Gate Vehicle Barrier Gates with Fence Boom
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Цвет жилья: Золото, Sliver, Onyx Black, темно -желтый, Jacinth
Тип бума: Ограждение бум
Необязательный бум: Большой восьмиугольный бум, свинг -бум, бум для забора, квадратный бум, бум для лечения
Дополнительные аксессуары: Детектор петли, инфракрасный фотоэлемент, выключатель цепи, поддержка Adujstable Arm, пресс-волна, р
Выделить:

commercial car barrier gate with fence

,

vehicle barrier gates 10 million operations

,

parking barrier gate boom warranty

Основная информация
Место происхождения: КИТАЙ
Фирменное наименование: WEJOIN
Сертификация: CE ISO SGS
Номер модели: WJCB101
Оплата и доставка Условия
Упаковывая детали: Картон
Время доставки: 12 рабочих дней после получения оплаты
Условия оплаты: T/T, Western Union
Поставка способности: 10000 комплектов/месяц
Характер продукции

10 Million Operating Times Commerrcial Car Barrier Gate Vehicle Barrier Gates with Fence Boom


Independent designed and developed by WEJOIN,commercial variable frequency barrier has functions as following:

1. DC frequency conversion control motor drive, with a rod drive mechanism, balance spring, stable and reliable operation, the motor life of up to 6 million times or more.
2. The whole series is equipped with standard rebound function, when the boom is blocked in the process of falling, it will automatically rebound.
3. Support external radar, coil, infrared anti-smash function, built-in DC 12V power output, can be used for external radar power supply.
4. Support RS485 communication or RS485 off-line connection.
5. Optional Bluetooth module, convenient debugging of barrier gates through small programs.
6. Large LCD screen display, English visual menu, easy function selection and debugging.
7. Interchangeable left and right direction.


Barrier Gate Parameter

1. Working Temperature (Motor): -35℃~ + 70℃
2. Power Supply Input Voltage: AC100~265V
3. Controller Input Voltage: DC24V±10%, 10A
4. Motor Power: 180W MAX
5. Relative Humidity: 30%~80%, No condensation
6. Distance of Remote Control: L≥30M
7. Running Speed:CB01VF-H 1~4 S;CB01VF-I 2~6 S
8. Enclosure Rating:IP54
9. MTBF:6,000,000 times
10. Max Boom Length:8M


Auto-open when power off

Sub-menu

Defaults

Range

Remarks

Low voltage actuation time

OFF

0-5000, 0 is OFF

The time when the voltage is lower than the set threshold and continues to exceed the threshold, it will turn on automatically.

Unit: millisecond.

Low voltage threshold

21

15-23

The operating voltage is lower than the threshold; unit: V.


Buffer Time for Boom from Closing to Opening

Pressing open button in the process of closing, this parameter is used to set the buffer time of the controller from receiving the command to starting to open.



Buffer Time of Barrier Gate Stopping

Pressing stop button in the process of barrier gate opening or closing, in order to make the barrier stop smoothly, set a buffer time. This time is the time from the barrier gate receiving the stop command to stopping completely.
